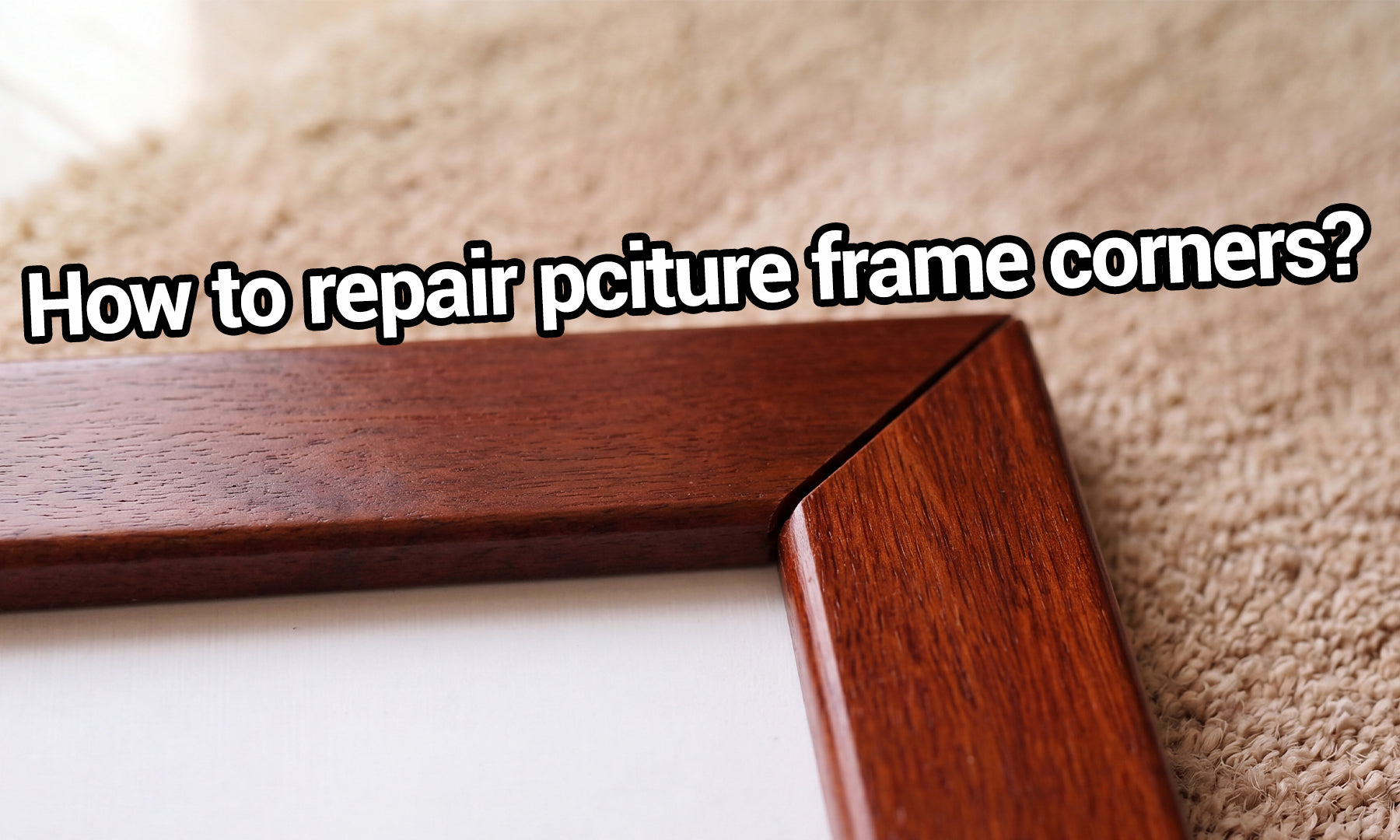

Why My Picture Frame Corners Keep Separating?

If you are building picture frames and notice that the corners keep opening up, feel weak, or don’t stay aligned over time, you are not alone. This is one of the most common frustrations among DIY woodworkers, framing shops, and hobby users.

In most cases, the issue is not the wood—it is either the assembly method or how the V nailer is being used.

Picture Frame Corners Keep Separating

One of the most frequently asked questions is:

“Why do my picture frame corners keep coming apart?”

Many beginners assume that V nails alone are enough to permanently hold the frame together. In reality, professional framers always combine wood glue with V nails.

The correct function of a V nail is to:

• Hold the joint tightly in position
• Maintain perfect 90° alignment
• Support the glue while it cures

It is not designed to replace glue.

If your corners are separating, the most common causes are:

• No wood glue used during assembly
• Incorrect V nail size
• Poorly cut frame edges (not true 45° angles)
• Uneven pressure during joining

For stronger and longer-lasting results, apply wood glue first, align the frame, and then use a V nailer to lock the corner securely.

👉 Related product: V1015B Pneumatic V Nailer

Wood Splitting When Using a V Nailer

Another common issue is wood cracking or splitting, especially when working with hardwoods like oak, walnut, or maple.

This usually happens because of:

• Air pressure set too high
• Using V nails that are too long for the material
• Driving nails too close to the edge
• Using the wrong nail type for dense wood

For most framing applications, a pressure range of 85–110 PSI is typically recommended for pneumatic V nailers.

Choosing the correct V nail size for your moulding thickness is also critical. Smaller nails reduce the risk of splitting, especially on thin or delicate frames.

V Nails Not Sinking Properly (or Misfiring)

If your V nailer fires but the V nail does not fully drive into the wood—or no nail comes out at all—it can quickly affect frame quality and slow down your workflow.

This is one of the most common problems users experience when assembling picture frames.

Typical causes include:

• Low or unstable air pressure
• Dirty feeding channel or worn internal parts
• Incorrect V nail size for the material
• Air leakage in the hose or fittings
• The V nails are not loaded into the correct size magazine channel

Many users overlook the last point. Different V nail sizes must be properly matched and seated in the corresponding magazine position. If the nails are loaded incorrectly, the tool may fire without feeding the V nail correctly, resulting in misfires or incomplete penetration.

Before starting a project, always make sure:

• The correct V nail size is being used
• The nails are properly seated in the magazine
• Air pressure is stable and within the recommended range
• The tool is clean and properly lubricated

A properly configured pneumatic V nailer should drive each V nail smoothly and consistently for clean, tight frame corners.

👉 Recommended tool for consistent performance:
V1015B Pneumatic V Nailer

Choosing the Right V Nail Size

Selecting the correct V nail size is one of the most important factors in frame quality.

A simple guideline:

• Thin moulding → short V nails (7–10mm)
• Standard frames → medium V nails (10–12mm)
• Thick hardwood frames → longer V nails (12–15mm)

Using the wrong size can lead to:

• Weak joints
• Wood damage
• Poor corner alignment

If you are unsure, always test on scrap wood before final assembly.

Final Thoughts

Most picture framing problems—such as loose corners, wood splitting, or incomplete nail penetration—are caused by setup and technique rather than the tool itself.

When used correctly, a pneumatic V nailer provides fast, precise, and professional-quality frame assembly.

If you are looking for a reliable and consistent tool for picture framing work, the Meite V1015B Pneumatic V Nailer is designed to deliver stable feeding, accurate alignment, and strong corner performance for both DIY users and professional framers.

👉 Explore product: https://www.meiteusa.com/products/v1015b-pneumatic-v-nailer

FAQ

1. Do I need wood glue when using a V nailer?

Yes. Wood glue is important. V nails are used to hold alignment and pressure, not to replace glue.

2. Why do my V nails keep splitting the wood?

This is usually caused by high air pressure, oversized nails, or placing nails too close to the edge of the moulding.

3. What PSI should I use for a pneumatic V nailer?

Most applications work best between 85–110 PSI, depending on wood hardness.

4. Why is my V nailer firing but not driving nails properly?

Common reasons include incorrect nail size, low pressure, dirty mechanism, or V nails not correctly seated in the magazine channel.

5. How do I choose the right V nail size?

Match nail length to wood thickness: small moulding uses shorter nails, while thicker hardwood frames require longer V nails.
